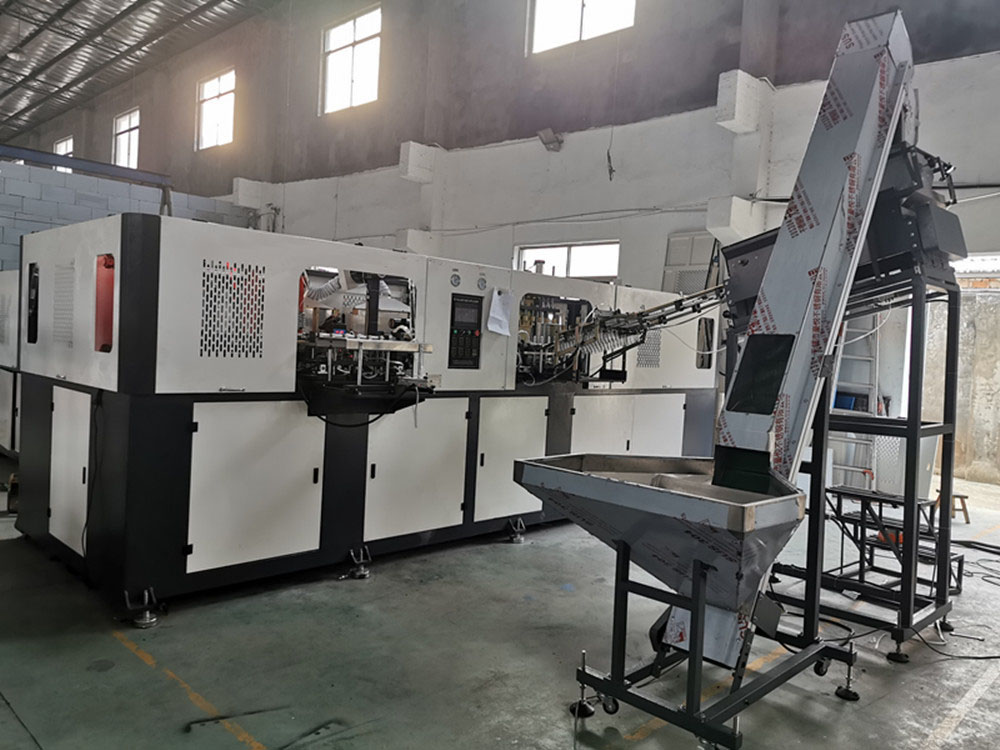

Full Automatic Bottle Blowing Machine, 6 Cavity
Short Description
Model No.: Hits: 12
Full Automatic Bottle Blowing Machine Supplier: 6 Cavity PET Bottle Blowing Machine with PLC Touch Screen, CE, SGS, ISO 9001, Easy to Operate and Maintain.
Request a quoteTags:
Key Specifications / Features
Full Automatic Bottle Blowing Machine
1. Full automatic
2. 6 cavity
3. Touch screen, PLC, easy to operate and maintain
4. CE, SGS, ISO 9001
Product Description:
Strong clamping force with high pressure and double crank links to lock the mold with two ways of operating. The safe, reliable and unique design of the position of the valve makes the pneumatic diagram in the machine easier to understand. Low cost, high efficiency, easy operation and maintenance, etc, are profited from the fully automatic technological process. The ideal cooling system makes the finished bottles keep away from any flaws. It is really easy for you to install, test and start up.
Main Advantages:
Low cost
Easy operation and maintenance
Ideal cooling system
Low rejection rate
Detailed images:
Technical parameter:
Application:
This bottle blowing machine is for blowing ET performers into a PET bottle.
1. Full automatic
2. 6 cavity
3. Touch screen, PLC, easy to operate and maintain
4. CE, SGS, ISO 9001
Product Description:
Strong clamping force with high pressure and double crank links to lock the mold with two ways of operating. The safe, reliable and unique design of the position of the valve makes the pneumatic diagram in the machine easier to understand. Low cost, high efficiency, easy operation and maintenance, etc, are profited from the fully automatic technological process. The ideal cooling system makes the finished bottles keep away from any flaws. It is really easy for you to install, test and start up. Main Advantages:
Low cost
Easy operation and maintenance
Ideal cooling system
Low rejection rate

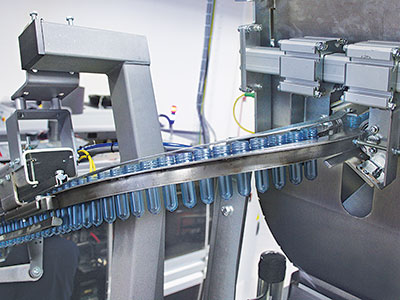

Detailed images:
Technical parameter:
| TIEM | UNIT | SGB-3-1500 | SGB-4-1500 | SGB-6-1500 | SGB-2-5000 |
| Theoretical output | PCS/H | 3300 | 4500 | 6500 | 1800 |
| Volume | L | 1.5 | 1.5 | 1.5 | 5 |
| Max.height | mm | 360 | 360 | 360 | 360 |
| Max.diameter | mm | 105 | 105 | 105 | 195 |
| Number of cavities | / | 3 | 4 | 6 | 2 |
| Mold plate dimension | mm | 430*360 | 600*360 | 820*360 | 820*360 |
| Mould thickness | mm | 190 | 190 | 190 | 280 |
| Mould opening stroke | mm | 110 | 110 | 110 | 200 |
| Power | 220-380 | 220-380 | 220-380 | 220-380 | |
| Total power | kw | 18 | 25 | 35 | 25 |
| Heating power | kw | 15 | 22 | 32 | 22 |
| Operation Pressure | mpa | 0.8-1.0 | 0.8-1 | 0.8-1 | 0.8-1 |
| Action Air Consuming | m³/min | >1.6 | >1.6 | >2 | >1.6 |
| Blowing Pressure | Mpa | 2.6-3.0 | 2.6-3.0 | 2.6-3 | 2.6-3 |
| Blowing air consuming | m³/min | >2.4 | >3.2 | >4.8 | 3.4*1.9*2 |
| Main body dimension | M | 2.7*1.45*2.0 | 3.4*1.9*2 | 4.4*1.9*2 | 3.4*1.9*2.1 |
| Main body weight | KG | 2000 | 2600 | 3200 | 2600 |
| Preform autoload | M | 1.6*0.85*2.2 | 1.6*0.85*2.2 | 1.6-0.85-2.2 | 1.6*0.85*2.2 |
| Preform autoloader weight | KG | 200 | 200 | 200 | 200 |
Application:
This bottle blowing machine is for blowing ET performers into a PET bottle.
