Automatic Monoblock Juice Bottle Filling Machine
Short Description
Model No.: Hits: 13
Automatic Juice Bottle Filling Machine Supplier: Monoblock Juice Glass Bottle Filling Machine, Ce, ISO, UL, SGS, Volumetric, 2500-24000 BPH, SS 304.
Request a quoteTags:
Key Specifications / Features
Automatic Monoblock Glass Bottle and Plastic Bottle Juice Filling Processing Machine for Juice Beverage Industry.
Basic Info.
Automatic Grade: Automatic.
Packaging: Bottle.
Dosing Device: Plunger.
Certification: Ce, ISO, UL, SGS.
Type: Volumetric Filling Machine.
Material Type: Liquid.
Capacity: 2500-24000 BPH.
Bottle Volume: 350-1500ml.
Material: Stainless Steel 304.
Bottle Type: Round or Square Bottle.
Trademark: Maticline.
Transport Package: Wooden Case.
Specification: RCGF 24-24-8.
Origin: China.
General description:

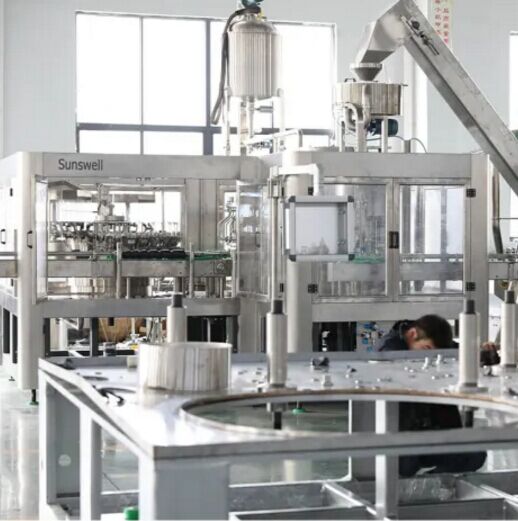

3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the basis of introducing, digesting and absorbing the advanced technology from Germany and Italy.
The machine is mainly used for washing, filling, capping PET bottle juice, tea drinks and all kinds of energy drinks for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.
1. Rinser
- Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
- Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
- Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash off all sides of the bottle and can save water.

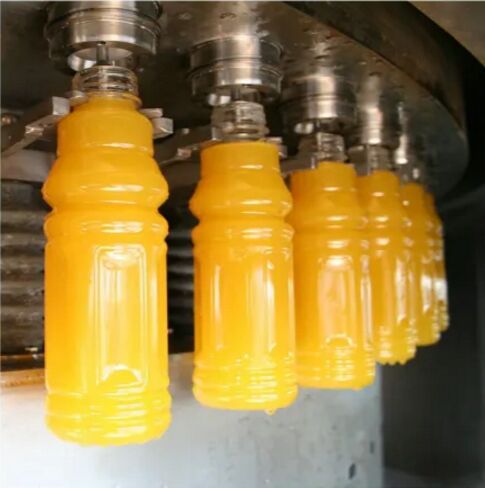

2. Filler
- The design of the filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm.
- The filling valve material is SUS 304.
- The filling system has liquid level automatic control.
- Filling valve lift is controlled by the valve elevator, after the filling valve contacts the bottleneck, it starts to fill.
- Bottle is conveying by the wheel in the filling part.
- The juice or other hot beverage can be backflow by return tank to control filling temperature.
3. Capper
The screw capping machine is the most precise part in the 3-1 machine, it has a big influence on the good's stability and defective rate. Our screw capping has the following features.
1) Maticline import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2) In the screw capping part. It installed photoelectrical control, when it has no cap, or the cap is bad, the machine will stop automatically.
4. Equipment structure
L Base
L Rotary rinser
L Rotary filler
L Rotary capper
L Bottle infeed and outfeed system
L Control
5. Main configuration
L Touch screen: THINGET
L PLC program controller: Mitsubishi
L Inverter: Mitsubishi
L Photoelectrical controller: Autonics
L Proximity switch: Autonics
L Other electrical components: Schneider
L Pneumatic component: Airtac
L Water pump: Nanfang
L Main motor: Siemens
L Bearing: Harbin
Technical parameters:
| Min. Order: | 1 Piece |
| Port: | Guangzhou, China |
| Production Capacity: | 60PCS/Year |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Condition: | New |
| Customized: | Customized |
| Voltage: | Customized |
| Composition: | Filling Machine |
| Processing Material: | Juice |
| Process: | Filling |
Basic Info.
Automatic Grade: Automatic.
Packaging: Bottle.
Dosing Device: Plunger.
Certification: Ce, ISO, UL, SGS.
Type: Volumetric Filling Machine.
Material Type: Liquid.
Capacity: 2500-24000 BPH.
Bottle Volume: 350-1500ml.
Material: Stainless Steel 304.
Bottle Type: Round or Square Bottle.
Trademark: Maticline.
Transport Package: Wooden Case.
Specification: RCGF 24-24-8.
Origin: China.
General description:
3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the basis of introducing, digesting and absorbing the advanced technology from Germany and Italy.
The machine is mainly used for washing, filling, capping PET bottle juice, tea drinks and all kinds of energy drinks for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.
1. Rinser
- Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
- Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
- Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash off all sides of the bottle and can save water.
2. Filler
- The design of the filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm.
- The filling valve material is SUS 304.
- The filling system has liquid level automatic control.
- Filling valve lift is controlled by the valve elevator, after the filling valve contacts the bottleneck, it starts to fill.
- Bottle is conveying by the wheel in the filling part.
- The juice or other hot beverage can be backflow by return tank to control filling temperature.
3. Capper
The screw capping machine is the most precise part in the 3-1 machine, it has a big influence on the good's stability and defective rate. Our screw capping has the following features.
1) Maticline import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2) In the screw capping part. It installed photoelectrical control, when it has no cap, or the cap is bad, the machine will stop automatically.
4. Equipment structureL Base
L Rotary rinser
L Rotary filler
L Rotary capper
L Bottle infeed and outfeed system
L Control
5. Main configuration
L Touch screen: THINGET
L PLC program controller: Mitsubishi
L Inverter: Mitsubishi
L Photoelectrical controller: Autonics
L Proximity switch: Autonics
L Other electrical components: Schneider
L Pneumatic component: Airtac
L Water pump: Nanfang
L Main motor: Siemens
L Bearing: Harbin
Technical parameters:
| Model | CGF12125 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF505012 | CGF606015 | CGF808020 |
| washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-20 |
| Production capacity(600ml) (B/H) | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | 35000-40000 |
| suitable bottle specification(mm) | φ=50-110=170 330-2250ml | |||||||
| Washing pressure(kg/cm 2 ) | 2-3 | |||||||
| Motor power(kw) | Main motor 2.2kw | Main motor 2.2kw | Main motor 3kw | Main motor 5.5kw | Main motor 7.5kw | Main motor 11kw | Main motor 15kw | Main motor 19kw |
| Overall dimensions (mm) | 2400×1650 ×2500 | 2600×1920 ×2550 | 3100×2300 ×2800 | 3800×2800 ×2900 | 4600×2800 ×2900 | 5450×3300 ×2900 | 6500×4500 ×2900 | 7680×6640 ×2850 |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | |
