Introduction to Wine Bottling Machines

Introduction to Wine Bottling Machines


According to the characteristics that wine is easy to froth when it is being filled, wine filling machines can be divided into vacuum (negative pressure) filling machines and siphon filling machines. These two kinds of machines can not cause the wine to froth during filling, which ensures the filling accuracy. Wine bottling machines are generally used in conjunction with bottle washing machines and stoppering machines.

(1) The machine takes advantage of the principle of low vacuum filling and sticks to the bottle wall for filling, which will not cause the frothing of the wine, and ensures the consistency of the liquid level after filling.

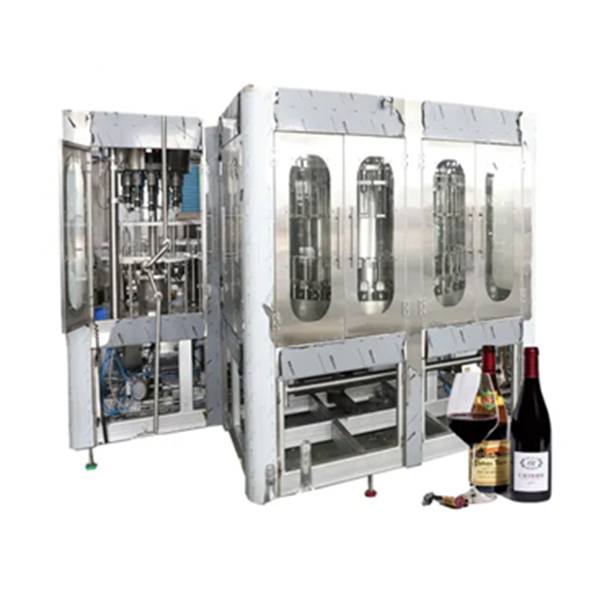

The Wine Bottling Machine
(2) Bottles with incomplete bodies will not be filled. The bottles will not break, and the bottle height error will be self-adaptive. The well-designed bottle holding device is made of exquisite materials. The service life of the bottle holding device is guaranteed by reasonable design, excellent processing technology and accurate compression and shock absorption ratio.

(3) The filling valve adopts the novel filling principle of the filling industry, and is reasonable in design, excellent in quality and accurate in machined parts.

(4) Without disassembling the filling valve, lift up the filling valve and rotate it 15 degrees clockwise to open the filling valve normally. At this time, the filling barrel and the filling valve can be backwashed conveniently. With single-pin stationary valve body, the valve core can be completely pulled out by gently pulling the pin roll. Thus, it has convenient maintenance.

(5) The wine bottling machine adopts high-sensitivity liquid level probes, inlet liquid level control devices and pneumatic angle seat valves to control the fluctuation of liquid level in the filling barrel within 30 mm.
